The main part of any software project is not code (code is just a temporary part and implementation) but knowledge produced during the project. I guess knowledge is the main part of every business today and it is very important to move produced knowledge from non-formal level to formal level to avoid its loss. There are many approaches to save knowledge and a mind map diagram is one of them. Also it is very important to keep the "distance" between project and its knowledge as short as possible and the ideal variant is to keep knowledge just within the project as a document set. If you use any external knowledge engineering tool then the distance already is not so short and for the cause I had decided to develop some plugin which would allow to create and edit knowledge graph just within NetBeans based projects.

History of implementation

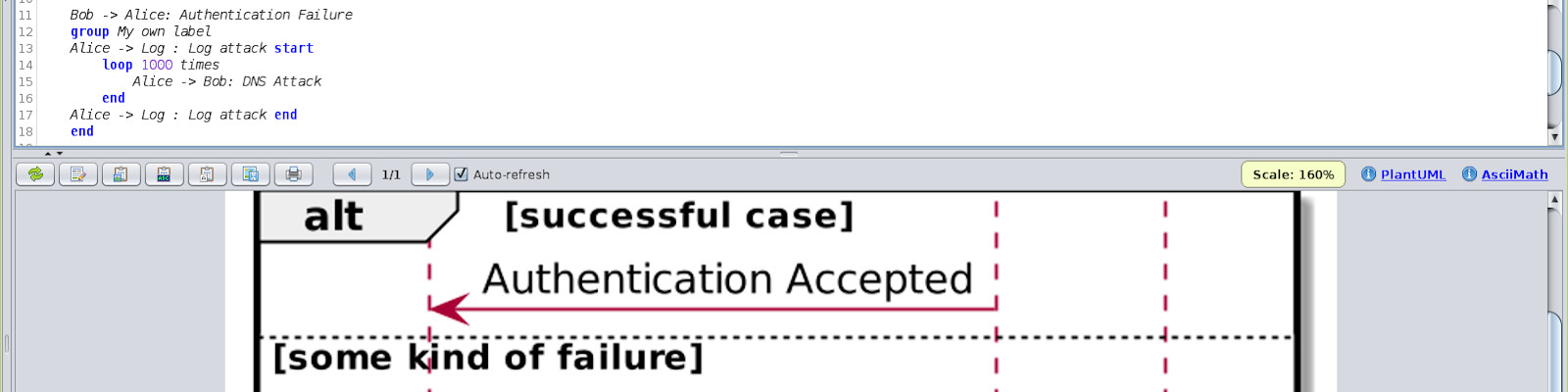

Initially the editor was published as a plug-in for NetBeans IDE, but then I developed version for Intellij IDEA. Some of my friends are not programmers at all and they needed some tool to make documentation for their non-IT projects, so I developed standalone version which wraps IDE plugin with some improvements (like embedded support of PlantUML), the standalone version is published as Scia Reto editor. So at present there are three products based on the same core:

  • SciaReto standalone desktop application
  • Intellij IDEA IDE plugin
  • NetBeans IDE plugin

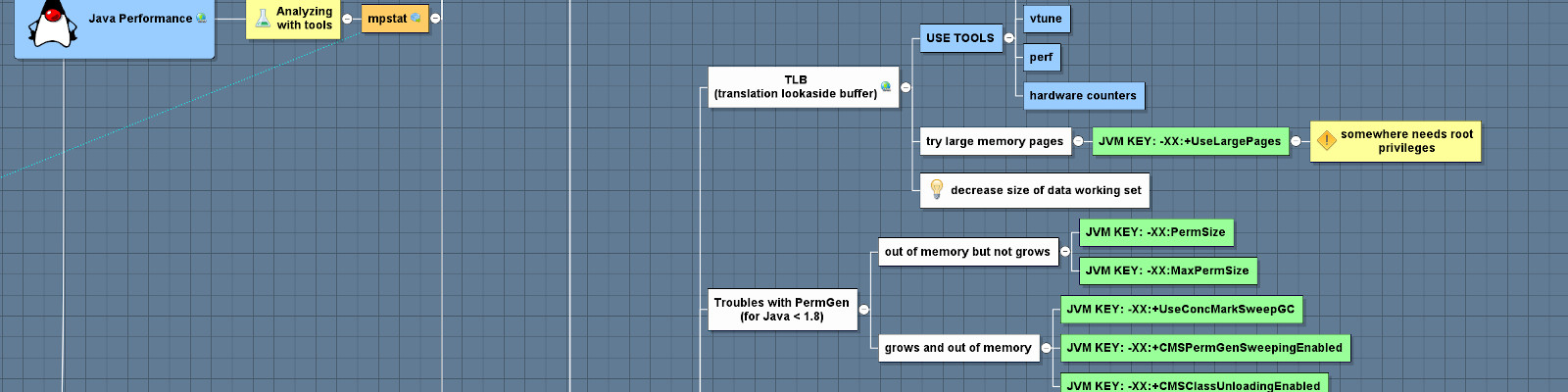

Three application with opened mind maps


Many thanks to Geertjan Wielenga for the nice screencast shows the plugin in work

Key features

Data format

The plug-in keeps all mind map information in single UTF-8 encoded plain text file formed in markdown compatible format, so the file can be easily read and interpret and without the plugin.

Mind Map generated by NB MindMap plugin
> __version__=`1.0`

# Root <br/>topic
> topicLinkUID=`14F9D4CD31DA`

## First level

### Item 1\.1
<pre>Some note for item 1.1</pre>

### Item 1\.2

New mind map creation

The plug-in creates new mind map just within project folders through the standard NetBeans (in case of usage with NetBeans) new file wizard, just start the New File wizard and select the Other category and you will see the NB Mind-map record in the File Types: list. Select the NB Mind-map and press Next> in the wizard.
New file wizard

Work with mind maps

Mind maps are opened in IDE as documents with graphic interface and the plugin doesn't add any new actions into IDE menu so all operations over mind maps you can make through the document pop-up menu. The Pop-up menu is formed for the current document state and context.

Move topics

All manipulations over topic order and its position in the map hierarchy can be made only through mouse Drag&Drop operations (keep in mind that only one topic can be moved in the same time).

Change look and feel of mind maps

You can tune most of graphic parameters for mind map rendering through the IDE Options (or just click Options in the pop-up menu).

Export mind map data

Today it is very important to have way to export data to another formats to use the knowledge in another tools. The Plug-in supports several formats to export data:

  • Plain text format - just plain UTF8 encoded format.
  • Markdown format - UTF8 encoded specialized text format, it is compatible with Markdown used by GitHub.
  • FreeMind map - XML based format for the FreeMind editor, a popular mind map editing tool, also the format is supported for export by X-Mind editor.
  • Mindmup map - JSON based format for the Mindmup online editor.
  • PNG image - Rasterized standard PNG image files.
  • SVG image - SVG vector image format.

Content alowed in mind maps

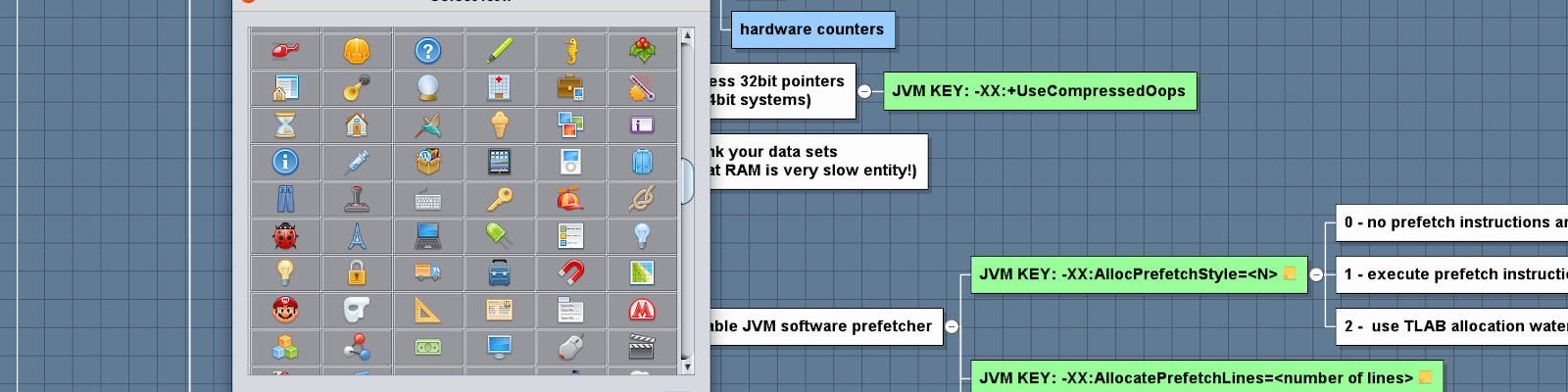

Mainly you can keep short texts in your mind maps as topic names but sometime it is useful to keep and another information, the plugin allows to keep below listed information assets:

  • Short text - short text in one or two lines as topic name, mainly used as id for the topic.

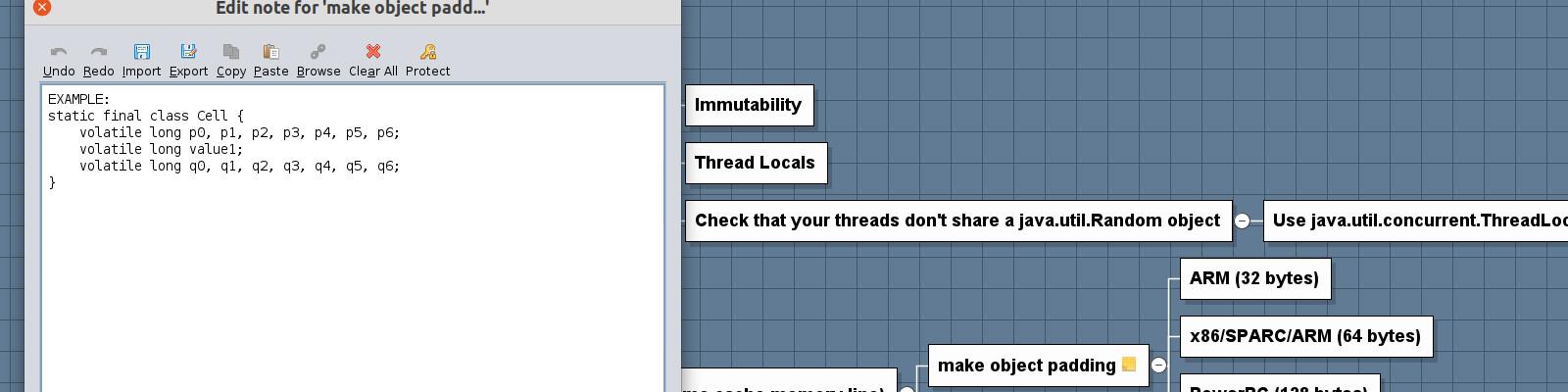

  • Long text - long text information which can be opened and edited in special editor.
  • URL link - just URL link to be opened in browser
  • File link - link to a file, link to a file, you can add them through special dialog or just drag and drop file from NetBeans project tree to a topic, the file will be opened within IDE as a document
  • Jump - link to another topic in the same mind map, it allows to make some navigation in very big mind maps, also routes can be shown and it provides some extra way to represent links between elements.

You can add and edit new topic content through the mind map pop-up menu and if you want remove some content then just open editor for the content and remove all text information.
